Find the Exact Solution for Any Environment

With its high-quality cable ties, HellermannTyton provides cable management and identification solutions that meet practically any challenge. By filling the most up-to-date requirements for cable ties, HellermannTyton pushes the boundaries of what is technologically possible in even the harshest environments. These dynamic cable ties are available in a variety of materials, ranging from polyamides (nylon) to fluoropolymers, and all materials below are RoHS compliant.

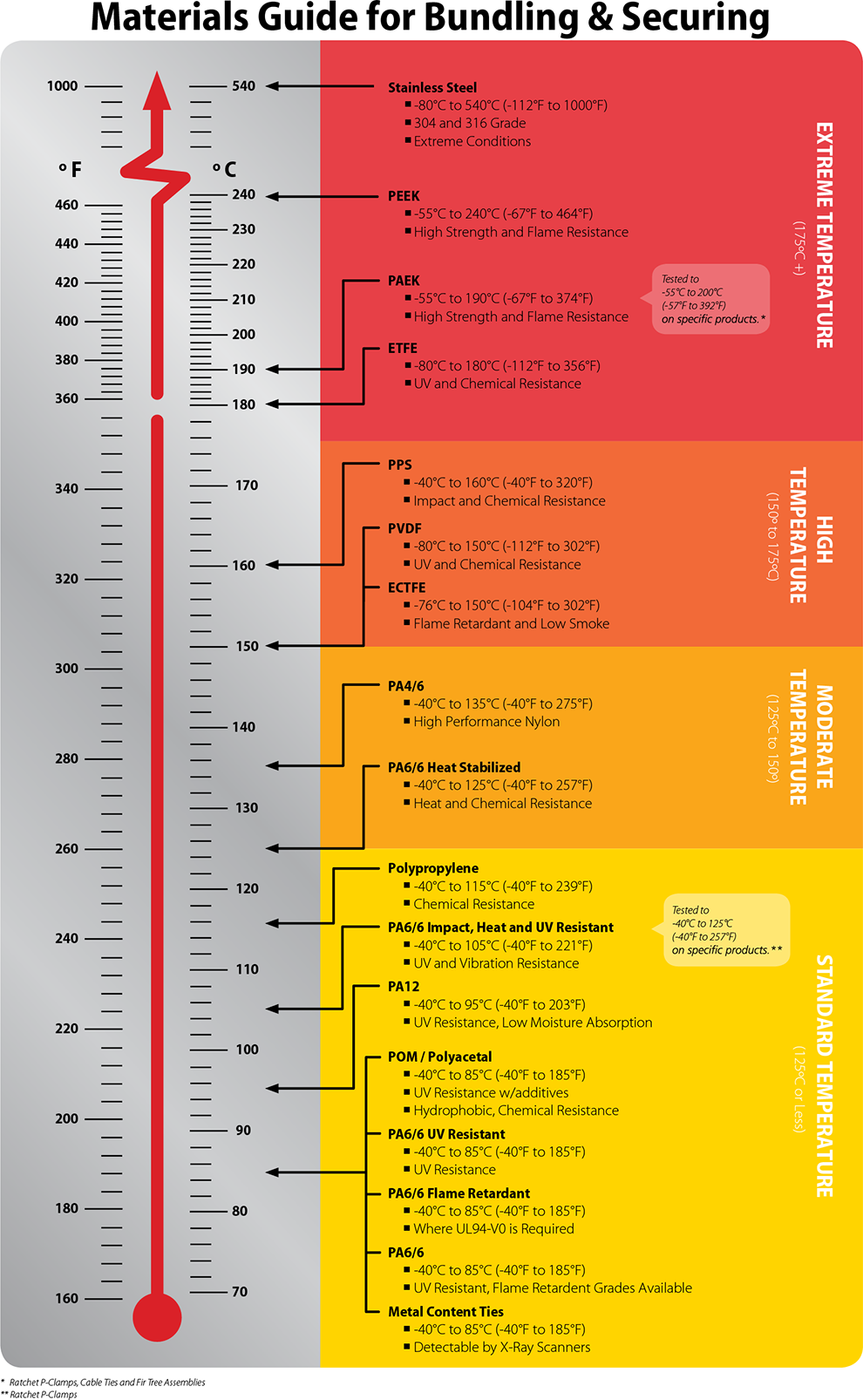

Tailor-Made for Your Applications: Your Guide to Cable Management

Material Material
  Shortcut
Operating
  Temperature
Color** Flammability Material
  Properties*
Specification
Ethylene cholortrifluoroethylene E/CTFE -105°F to +302°F
(-76°C to  +150°C)
Red (RD) UL 94 V0 Resistance to radioactivity
UV resistant, not moisture sensitive
Good chemical resistance to acids, bases, oxidizing agents
Ethylenterafluoroethylene E/TFE -112°F to +302°F
(-80°C to +150°C)
Blue (BU) UL 94 V0 Resistance to radioactivity
Outstanding UV resistant, not moisture sensitive
Good chemical resistance to acids, bases, oxidizing agents
ASTM D-3159 Type
1 Grade 1UL
  2043
Polyacetal POM -40°F to +194°F
(-40°C to +90°C)
Natural (NA) UL 94 HB Limited brittleness sensitivity
Flexible at low temperature
Not moisture sensitive
Robust on impact
Not recommended for UV resistance
ASTM D6778 POM 0213
Polyacetal, UV stabilized POMUV -40°F to +221°F
(-40°C to +105°C)
Natural (NA) UL 94 HB Limited brittleness sensitivity
Flexible at low temperature
Not moisture sensitive
Robust on impact
Excellent UV resistance
Polyamide 12 PA12 -40°F to +248°F
(-40°C to +120°C)
Black (BK) UL 94 HB Good chemical resistance to acids, bases, oxidizing agents
Excellent UV resistance
ASTM D-4066PA411
Polyamide 4.6 PA46 -40°F to +266°F
(-40°C to +130°C)
Brown (BN)
Gray (GY)
Natural (NA)
UL 94 V2 Resistance to high temperatures
Very moisture sensitive
Low smoke sensitivity
Poor UV resistance
ASTM D-4066PA0922
Polyamide 6 PA6 -40°F to +176°F
(-40°C to +80°C)
Black (BK) UL 94 V2 High yield strength
Polyamide 6.6 PA66 -40°F to +185°F
(-40°C to +85°C)
Black (BK), Natural (NA) UL 94 V2 High yield strength
Poor UV resistance
ASTM D-4066PA0111FDA CFR177.1500
Polyamide 6.6, heat stabilized, glass fiber reinforced PA66GF30 -40°F to +284°F
(-40°C to +140°C)
Black (BK), Natural (NA) UL 94 HB High yield strength
Poor UV resistance
UL
Polyamide 6.6, high impact modified, heat and UV stabilized, proprietary blend PA66HIR-HSUVRS -40°F to +230°F
(-40°C to +110°C)
Black (BK) UL 94 HB Limited brittleness sensitivity
Higher flexibility at low temperature
Modified elevated maximum temperature
High yield strength
Very good UV resistance
ASTM D-4066PA0151
Polyamide 6.6, high impact modified, heat stabilized PA66HIRHS -40°F to +230°F
(-40°C to +110°C)
Black (BK) UL 94 HB Limited brittleness sensitivity
Higher flexibility at low temperature
Modified elevated maximum temperature
Very good UV resistance
ASTM D-4066PA0161
Polyamide 6.6, high impact modified, heat stabilized, glass fiber reinforced PA-66HIRHSGF -40°F to +257°F
(-40°C to +125°C)
Black (BK)
Natural (NA)
Green (GN)
Blue (BU)
Red (RD)
UL 94 HB High yield strength
Poor UV resistance
Polyamide 6.6, with metal particles PA66MP -40°F to +185°F
(-40°C to +85°C)
Blue (BU) UL 94 HB High yield strength
Metal and X-ray detectable
Polyamide 6.6 glass fiber reinforced PA66GF15 -40°F to +284°F
(-40°C to +140°C)
Black (BK)
Natural (NA)
UL 94 HB High yield strength
Poor UV resistance
UL
Polyamide 6.6, glass filled, impact modified, heat stabilized PA66GF13 -40°F to +284°F
(-40°C to +140°C)
Black (BK)
Natural (NA)
UL 94 HB High yield strength
Poor UV resistance
UL
Polyamide 6.6, heat stabilized PA66HS -40°F to +257°F
(-40°C to +125°C)
Black (BK)
Natural (NA)
UL 94 V2 High yield strength
Modified elevated maximum temperature
Poor UV resistance
ASTM D-4066PA0121
Polyamide 6.6 high impact modified, heat and UV stabilized PA66HIR-HSUV -40°F to +230°F
(-40°C to +110°C)
Black (BK) UL 94 HB Limited brittleness sensitivity
Higher flexibility at low temperature
Modified elevated maximum temperature
Very good UV resistance
ASTM D-4066PA0151UL
Polyamide 6.6 VO PA66V0 -40°F to +212°F
(-40°C to +100°C)
White (WH) UL 94 V0 High yield strength
Low smoke emission
ASTM D-4066PA0110
Polyaryletherketone PAEK -67°F to +392°F
(-55°C to +200°C)
Beige (BGE) UL 94 V0 Resistance to radioactivity
Not moisture sensitive
Good chemical resistance to acids, bases, oxidizing agents
21CFR
177.2415EEC 93/9/ EEC 151G
Polyetheretherketone PEEK -67°F to +464°F
(-55°C to +240°C)
Beige (BGE) UL 94 V0 Resistance to radioactivity
Not moisture sensitive
Good chemical resistance to acids, bases, oxidizing agents
DNV GL | EN 62275:2009VDE | DIN EN
  62275:2016-0121CFR 177.2415EEC 93/9/EEC 151G
Polyethylene PE -40°F to +220°F
(-40°C to  +104°C)
UL 94 V2 Moderate yield strength
Not moisture sensitive
Good chemical resistance to acids, bases and solvents
Polyphenylene sulfide PPS -40°F to +302°F
(-40°C to +150°C)
Black (BK)
Gray (GY)
UL 94 HB Good UV resistance
Polypropylene PP -40°F to +239°F
(-40°C to +115°C)
Black (BK)
Natural (NA)
UL 94 HB Floats in water
Moderate yield strength
Good chemical resistance to acids, bases and solvents
Good UV resistance
ASTM D-4101OO0327
Polypropylene 20% talcum PPT20 -40°F to +149°F
(-40°C to +65°C)
UL 94 HB Low moisture absorption
Good chemical resistance to most acids, bases, alcohol and oils
Polyvinylchloride PVC +122°F
(+50°C)
Black (BK)
Natural (NA)
UL 94 V0 Low moisture absorption
Good chemical resistance to acids, bases,
  salts, alcohol and oils
Stainless steel SS304, SS316 -112°F to +1000°F
(-80°C to  +538°C)
Metal (ML) Non-Burning Corrosion resistant
Antimagnetic
Weather resistant ~~~
Outstanding chemical resistance
Thermoplastic elastomer TPE -40°F to +122°F
(-40°C to +50°C)
UL 94 HB Low moisture absorption
Good chemical resistance to acids, bases, salts, alcohol and oils
Thermoplastic vulcanized rubber TPV -40°F to +194°F
(-40°C to +90°C)
Black (BK) UL 94 HB High elasticity
Good chemical resistance to acids, bases and oxidizing agents
No UV resistance

*These details are only guide values. They should not be regarded as a exhaustive material specification and are no substitute for suitability tests. Please see our datasheets for further details.

**Additional colors available on request.

HF = Halogen free

LFH = Limited Fire Hazard

RoHS = Restriction of Hazardous Substances

A = resistant

B = partly resistant

C = not resistant

N/A = not applicable

These values are only rough guides. They should not be regarded as a material specification and are no substitute for a suitability test.

Please see HellermannTyton technical datasheets for further details.

Conc (%) Temp. (°C) MATERIAL SHORTCUT
PA66 PA46 PA12 PA11 POM PP ETFE TPV PAEK PPS
Acetaldehyde 90 52° B B N/A C N/A A A B A N/A
Acetic Acid 5 23° B B B B A A A A A N/A
Acetone 100 23° A A A A B A A B A A
Ammonium chloride 10 52° C B N/A N/A N/A A A N/A N/A N/A
Benzaldehyde N/A 23° A B N/A A N/A N/A A C A N/A
Benzene 100 23° A A A A B B A C A N/A
Bromine 100 23° C C C C N/A C A N/A N/A N/A
Calcium chloride 5 60° A A N/A A A A A A A A
Carbon tetrachloride 100 23° A A B C B C A C N/A N/A
Chlorine water Dilute 23° C C N/A C N/A N/A A C N/A N/A
Chloroform 100 23° B C C N/A C C A C N/A N/A
Chromic acid 10 23° C C N/A C B A A C A N/A
Copper sulfate 10 23° A A A A A A A N/A N/A N/A
Cyclohexanone 100 23° A N/A C N/A B A B A N/A
Diethyl ether 100 23° A A A A A N/A A N/A A A
Engine oil 100 23° N/A N/A A A A A A B A A
Ethyl acetate 95 50° A A A A B B A B A N/A
Ethylene glycol N/A 23° A A N/A N/A N/A A A A N/A A
Ether N/A 23° A A A N/A A N/A N/A B N/A N/A
Formic acid 98 23° C C C C B A A B N/A N/A
Gasoline N/A 23° A N/A A N/A B A C N/A A
Hydrochloric acid Dilute 23° C C C B C A A A A A
Hydrogen peroxide 5 43° C C N/A B C A A B N/A N/A
Methyl alcohol 100 23° A N/A N/A N/A A A A A N/A A
Methyl isobutyl ketone 100 23° A N/A N/A N/A A N/A A N/A N/A N/A
Nitric acid 10 23° C C C C C A A B A A
Petroleum N/A 23° A A A A A B A B A A
Phenol 90 23° C C C C C A A C N/A N/A
